SYBASE: Building and Populating Tables

Building a Complete Database

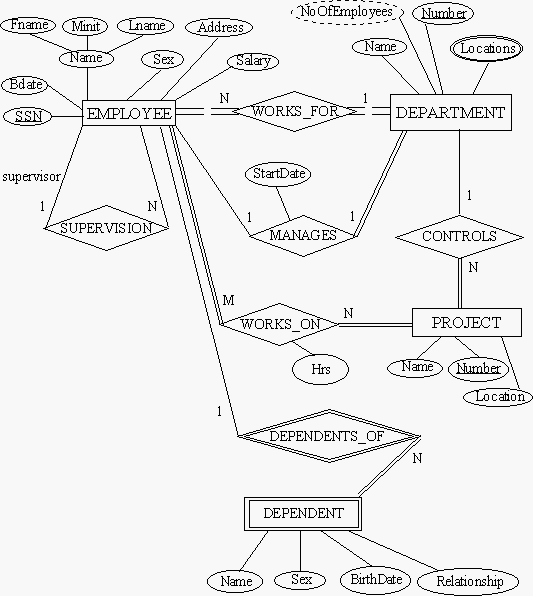

From the last two labs, you all know how to create tables in Sybase. In this lab, we shall do two important exercises, using the information from the previous labs. The first is to build a complete Database. We shall use the same example as the Lecture: The Employee-Department-Projects Database. Here is the ER Diagram for this DB.

  1. Use the ER diagram to construct the 3NF schemas required for the database.
  2. Identify the primay and foreign keys for each schema.
  3. Use the create table command and make tables for each schema.
NOTE: All tables must be created through script files.

Populating the Database

After ALL tables have been created, add data to each table using the:

insert into [TABLE]
values ("....ADD VALUES HERE")
go
command.

NOTE: All data insertion MUST be done through script files. It may be better if you have ONE script file for each table. In this file, you will need to put in as many insert commands as the number of rows of data.

You may use the data given to you in the lecture notes, or you may make up your own data.

Problem Cases in Creating Tables, and in Populating Tables

Consider the case where you need to create tables according ot the following schemas:
A( a1, a2, a3), foreign key a2 refers to B(b1)
B( b1, b2, b3), foreign key b2 refers to A(a1)

Problem 1

To create table A, you need a referential constraint to table B; but to create table B, you need a referential constraint to table A. You may handle this problem by first defining table A without specifying the referential constraint to table B. Then you can create Table B. Finally, you can add the remaining constraint on table A by using the ALTER TABLE ocmmand of SQL as follows:

alter table A add constriant YOUR_CONSTRAINT_NAME foreign key (a2) references B(b1)
go

Thus, the sequence of operations is as follows:

  1. Create Table A (without the referential constraint)
  2. Create Table B (with all constraints)
  3. Alter Table A and add the remianing constriant referring to B.
Problem 2 Another problem will occur with tables A amd B when you start to put data into them: If you put a row into table A, with values <a11, a21, a31>, then the foreign key constraint will require you to have at least one row in B with b1 value equal to "a21". However, you have not yet put any data into table B yet. You get an insertion error.

One way to solve this problem is to allow the attribute a2 of table A to have NULL values. Then, the following sequence of operations will work:

  1. Insert all the rows of A with null values in the field a2.
  2. Insert all rows of table B, with all values.
  3. Modify the data of Table A, to change the earlier NULL a2 value of each tuple to the correct value
To the the third step in this process, you will need to learn a new command of SQL, the UPDATE command. Here is an example:

update A set a2="XYZ" where a1 = "a11"
go

Notes: Here, in every row where the a1 value is equal to "a11", the value of a2 column is set to "XYZ". Of course, "XYZ" must be one of the values of column B( b1) to satisfy the foreign key constraint !

Here is the link to the Sybase main page

Search for "Transact-SQL User's Guide -- the search results will have an item leading to the user's guide page.
